Multilane Sachet Packing Machine
Multilane Form Fill Seal Sachet Packing Machine
Model MKS - MT - 600/800
Multiko’s Multi-track VFFS Sachet Packaging with 2 different models, MKS-MT 600 and MKS-MT 800 is an affordable solution for packing single dosage usage sachets specially for free flowing and semi viscous liquids, pastes and small dosage powders.
Depending on the sachet size up to 8 tracks / lanes can be handled. The operating cycle speed is 60 cycles per minute per track. Hence a 8 lane machine can produce 480 sachets per minute.
- Versatile design
- Cam operated horizontal & vertical sealing system
- Induction and servo driven motor.
- Built in safety door guards with machine interlock
- suitable for any heat sealable laminated film.
- Main Features
- Easy access of all operational controls
- Contact parts in stainless steel
- Automatic web aligning system
- Quick size change over
- User friendly operating controls
- High accuracy for the smallest of dosing weight
- Robust steel frame
- Minimal maintenance
- Downtime reduction
- User friendly film replacement
- HMI with multiple recipes – immediate recall of each format parameters.
Easy integration with filling systems

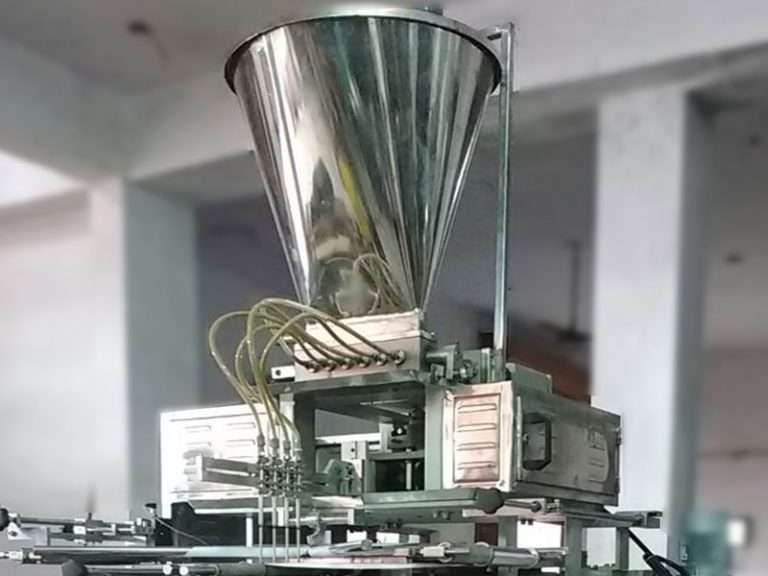

Liquid Filler
Ketchup, Sauce, Shampoo, alcohol, Cream, Chocolate paste and other viscous liquids
Auger Filler
Non-free flowing sticky powders like Milk powder, Turmeric powder, spice powders, Pharma Powders, etc.
Sachet formats
4 Side seal sachets
Chained sachets with perforation
Technical Data
| Model | MKS-MT 600 | MKS-MT 800 |
| Sealing Style | 4 Side sealing sachets produced in both the models | |
| Speed | 60 cycles/ minute maximum (Depends upon the type of product & quantity to be filled) | |
| No of tracks | Depends upon the width of the pouch | |
| Laminate Specification | Width – 600 mm max. Roll Dia – 450mm. max. Reel Core I.D.- 150/76 mm | Width – 800 mm max. Roll Dia – 450mm. max. Reel Core I.D.- 150/76 mm |
| Maximum Pouch Length | 150 mm | 150 mm |
| Filling Range | 1 ml to 50 ml for liquids and pastes, 1g to 40g for powders | |
| Product to be Packed | Liquids, pastes, sticky Powders and free flowing powders | |
| Power Consumption | 6 KW | 7 KW |
| Dimensions | Length 3200 mm Width 2600 mm Height 2100 mm | Length 3200 mm Width 2600 mm Height 2100 mm |
| Weight | 1400 Kgs ( approx.) | 1600 kgs ( approx.) |
Multilane - form fill seal machine up to 8 lane
Multilane form, fill, seal machines are extremely flexible machines. Widely ranging products can be packed efficiently and effectively, and can be attractively presented in single dose sachets
